The Ultimate Guide To Carbide End Mills: Everything You Need To Know

Are you looking to elevate your machining game? Look no further than carbide end mills. In this comprehensive guide, we have compiled everything you need to know about these essential tools for precision cutting. From their composition to the various types available, we have got you covered. Dive into this ultimate guide to carbide end mills and take your machining skills to the next level.

- Understanding Carbide End Mills: What They Are and How They Work

Carbide end mills are a fundamental tool in the world of machining. They are a type of cutting tool specifically designed for use in milling machines to shape, cut, and finish materials such as metal, wood, plastic, and more. In this comprehensive guide, we will delve into the world of carbide end mills to give you a complete understanding of what they are and how they work.

Carbide end mills are made from a combination of tungsten carbide particles and a binding agent, typically cobalt. This mixture is compressed and sintered at high temperatures to create a strong and durable cutting tool. The tungsten carbide provides excellent hardness and wear resistance, while the cobalt helps to maintain the integrity of the tool during the cutting process.

One of the key advantages of carbide end mills is their ability to cut at high speeds and feeds, making them ideal for use in high production environments. They are also known for their ability to maintain a sharp cutting edge for longer periods of time, reducing the need for frequent tool changes. This not only saves time but also improves overall machining efficiency.

There are several different types of carbide end mills available, each designed for specific cutting tasks. Some common varieties include square end mills, ball end mills, corner radius end mills, and roughing end mills. Each type has unique features that make them suitable for different applications, such as contouring, slotting, and roughing operations.

When it comes to using carbide end mills, proper tool selection and setup are crucial for achieving optimal results. It is essential to choose the right type of end mill for the material being machined, as well as the specific cutting operation being performed. Additionally, ensuring the tool is properly secured in the spindle and the machine is set up correctly will help to avoid tool breakage and maximize tool life.

In terms of how carbide end mills work, the cutting action is achieved through a combination of rotation and linear movement. As the end mill rotates, the cutting edges make contact with the workpiece, removing material in the form of small chips. The helix angle of the end mill helps to control chip evacuation, ensuring efficient material removal and preventing chip buildup that can lead to tool damage.

In conclusion, carbide end mills are a versatile and essential tool for machining a wide range of materials. Their high hardness, wear resistance, and cutting performance make them a popular choice among machinists and manufacturers. By understanding what carbide end mills are and how they work, you can make informed decisions when selecting and using these tools in your machining operations.

- The Benefits of Using Carbide End Mills in Machining Applications

Carbide end mills have become a popular choice in machining applications due to their numerous benefits and superior performance compared to other types of end mills. In this comprehensive guide, we will delve into everything you need to know about carbide end mills and how they can enhance your machining operations.

First and foremost, let's explore what sets carbide end mills apart from other types of end mills. Carbide is a material known for its hardness and resistance to wear, making it ideal for cutting tough materials like steel, stainless steel, and titanium. This durability allows carbide end mills to last longer and maintain their cutting edges sharpness, ultimately leading to increased productivity and efficiency in machining processes.

One of the key benefits of using carbide end mills is their ability to provide high precision and accuracy in machining operations. The sharp cutting edges of carbide end mills deliver clean and precise cuts, ensuring tight tolerances and smooth finishing on workpieces. This level of precision is crucial in industries such as aerospace, automotive, and medical where tight tolerances are essential for the quality of the final product.

Furthermore, carbide end mills offer excellent heat resistance, allowing them to withstand high temperatures generated during machining processes. This heat resistance prevents the end mills from warping or deforming, ensuring consistent performance and prolonging their lifespan. As a result, carbide end mills are a cost-effective solution for long-term use and can help reduce tool replacement costs in the long run.

In addition to their durability and precision, carbide end mills also provide versatility in machining a wide range of materials. Whether you are working with hard materials like hardened steel or soft materials like aluminum, carbide end mills can effectively cut through them with ease. This versatility makes carbide end mills suitable for various industries and applications, allowing machinists to tackle different projects with a single tool.

Another advantage of using carbide end mills is their compatibility with high-speed machining processes. The hardness and strength of carbide allow for faster cutting speeds and higher feed rates, resulting in reduced machining times and increased productivity. This capability is especially beneficial for large-scale production runs where efficiency and speed are crucial to meet deadlines and production targets.

In conclusion, carbide end mills offer a myriad of benefits that make them a valuable tool in machining applications. From their durability and precision to their versatility and compatibility with high-speed machining, carbide end mills provide machinists with the performance and efficiency they need to achieve superior results. By understanding the advantages of carbide end mills and incorporating them into your machining processes, you can elevate your productivity and quality of workpieces, ultimately leading to success in your industry.

- Important Factors to Consider When Choosing Carbide End Mills

When it comes to selecting the right carbide end mills for your machining needs, there are several important factors to consider. Carbide end mills are a type of cutting tool used in a variety of industries, from aerospace and automotive to medical and woodworking. These tools are known for their durability and precision, making them a popular choice for machining operations.

One of the most important factors to consider when choosing carbide end mills is the material being machined. Different materials require different types of end mills, so it’s important to match the right tool to the right material. For example, high-speed steel end mills are better suited for softer materials like aluminum, while carbide end mills are more appropriate for harder materials like steel and stainless steel.

Another key factor to consider is the type of cutting operation you’ll be performing. There are several different types of carbide end mills, each designed for specific types of cutting operations. For example, an end mill with a high helix angle is ideal for high-speed machining, while a corner radius end mill is better suited for contour milling. Understanding the specific needs of your machining operation will help you choose the right type of carbide end mill for the job.

In addition to the material and cutting operation, it’s also important to consider the geometry of the end mill. The geometry of the end mill refers to the shape of the cutting edges and the angles at which they are ground. Different geometries are suited for different types of cutting tasks, so it’s important to choose the right geometry for your application. For example, a four-flute end mill is ideal for removing material quickly, while a ball nose end mill is better suited for finishing operations.

The coating on the carbide end mill is another important factor to consider. Coatings can help extend the life of the end mill by reducing friction and heat, as well as improving chip evacuation. Common coatings include TiN (titanium nitride), TiCN (titanium carbonitride), and AlTiN (aluminum titanium nitride). The type of coating you choose will depend on the specific requirements of your machining operation.

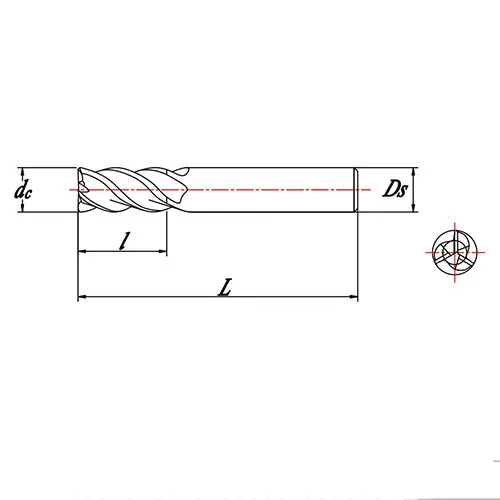

When choosing a carbide end mill, it’s also important to consider the size and shank diameter of the tool. The size of the end mill will depend on the size of the workpiece and the depth of cut required, while the shank diameter will determine the stability of the tool during machining. It’s important to choose a tool with the right size and shank diameter to ensure optimal performance and tool life.

In conclusion, there are several important factors to consider when choosing carbide end mills for your machining needs. By considering the material, cutting operation, geometry, coating, size, and shank diameter of the end mill, you can ensure that you have the right tool for the job. Taking the time to select the right carbide end mill will help you achieve the best results in your machining operations.

- Tips for Proper Maintenance and Care of Carbide End Mills

Carbide end mills are a vital tool in any machinist's arsenal, and proper maintenance and care are essential to ensuring they perform at their best for as long as possible. In this article, we will provide you with expert tips on how to properly maintain and care for your carbide end mills, so you can get the most out of your investment.

To begin with, it is important to understand the construction of carbide end mills. These cutting tools are made of a combination of carbide and cobalt, which gives them their strength and durability. Carbide end mills are designed to withstand high temperatures and produce clean, precise cuts on a variety of materials, making them a valuable tool for any machining operation.

One of the most important things you can do to maintain your carbide end mills is to keep them clean. After each use, it is important to remove any debris or buildup from the cutting edges to prevent dulling and ensure a smooth cutting operation. You can use a small brush or compressed air to remove any chips or debris from the flutes of the end mill, and a soft cloth or brush to clean the shank and other surfaces.

In addition to keeping your end mills clean, it is also important to store them properly. Carbide end mills should be stored in a dry, cool place to prevent rust and corrosion. You can use a dedicated storage container or rack to keep your end mills organized and easily accessible, and be sure to keep them away from any sources of moisture or heat that could damage the carbide.

When it comes to using your carbide end mills, there are a few tips you can follow to prolong their lifespan. First, always use the appropriate cutting speed and feed rate for the material you are working with to prevent excessive wear and heat buildup. Additionally, be sure to use coolant or lubricant when cutting to keep the temperature of the end mill down and reduce friction.

If you notice that your carbide end mill is starting to dull or wear, it may be time to regrind or sharpen the cutting edges. You can either do this yourself using a diamond wheel grinder or send your end mills to a professional regrinding service. It is important to regrind your end mills before they become too dull, as using a dull end mill can cause poor surface finish, increased tool wear, and potential damage to your workpiece.

In conclusion, proper maintenance and care of your carbide end mills are crucial to ensuring they perform at their best and last for as long as possible. By following the tips outlined in this article, you can keep your end mills clean, store them properly, and use them correctly to get the most out of your investment. With a little bit of care and attention, your carbide end mills can continue to provide you with clean, precise cuts on a variety of materials for years to come.

- Advanced Techniques and Strategies for Maximizing Performance with Carbide End Mills

Carbide end mills are essential cutting tools used in a wide range of machining operations. They are known for their durability, high precision, and efficiency in cutting through tough materials such as metal, wood, and plastics. In this ultimate guide, we will delve into the advanced techniques and strategies for maximizing performance with carbide end mills.

When it comes to choosing the right carbide end mill for your specific application, there are several key factors to consider. The first factor to consider is the type of material you will be cutting. Different materials require different types of carbide end mills, each designed to handle specific cutting conditions. For example, a high-speed steel end mill would be ideal for cutting through softer materials such as wood or plastic, while a solid carbide end mill would be better suited for cutting through tough metals like stainless steel or aluminum.

Another important factor to consider when selecting a carbide end mill is the flute count. The number of flutes on the end mill affects the chip evacuation, cutting efficiency, and surface finish. Generally, end mills with higher flute counts provide better surface finishes and increased cutting efficiency, making them ideal for high-speed machining operations. On the other hand, end mills with lower flute counts are better suited for roughing operations where chip evacuation is critical.

In addition to flute count, the helix angle of the carbide end mill also plays a crucial role in determining the cutting performance. The helix angle refers to the angle of the flutes relative to the axis of the end mill. End mills with higher helix angles are more effective at evacuating chips and reducing chatter, making them ideal for high-speed machining applications. Conversely, end mills with lower helix angles are better suited for heavy-duty cutting operations where chip evacuation is less of a concern.

To maximize the performance of your carbide end mill, it is important to pay attention to the cutting parameters such as cutting speed, feed rate, and depth of cut. Cutting speed refers to the speed at which the end mill rotates during the cutting process and is measured in revolutions per minute (RPM). Feed rate refers to the speed at which the end mill moves along the workpiece during cutting and is measured in inches per minute (IPM). Depth of cut refers to the thickness of the material being removed during a single pass of the end mill.

By optimizing these cutting parameters based on the specific material and cutting conditions, you can achieve maximum cutting efficiency and tool life with your carbide end mill. Additionally, using cutting fluids or lubricants can help to improve chip evacuation, reduce heat buildup, and extend the tool life of your carbide end mills.

In conclusion, carbide end mills are versatile cutting tools that offer high precision and efficiency in a variety of machining applications. By understanding the advanced techniques and strategies for maximizing performance with carbide end mills, you can achieve superior cutting results and increase productivity in your machining operations. Remember to consider factors such as material type, flute count, helix angle, and cutting parameters when selecting and using carbide end mills for optimal performance.

Conclusion

In conclusion, carbide end mills are an essential tool for any machining project, offering superior durability and performance compared to other types of end mills. By understanding the various types, coatings, and geometries available, you can select the right carbide end mill for your specific application and achieve optimum results. With the information provided in this ultimate guide, you are well-equipped to make informed decisions when it comes to selecting and using carbide end mills in your machining projects. Remember, choosing the right tool is crucial for achieving precision and efficiency in your work, so take the time to educate yourself and make the best choice for your needs. Happy machining!
